Introduction Examples
After a brief introduction to Python
and object oriented programming,
this set of examples covers basic calibrations
using either PythonModels (see PythonModel) or SIERRA models.

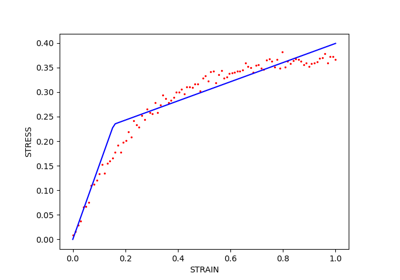

The first set focus on Python models where calibrations are performed
to data sets with known solutions. These are intended to
show MatCal’s basic input file structure and usage. A few also touch on
calibration issues to be weary of for calibrations with
analytical objectives that can easily be visualized for
demonstration purposes.
These are then followed with more applied examples with similar goals using a MatCal generated SIERRA model for a uniaxially loaded material point (Uniaxial Loading Material Point Model). First a successful calibration is shown with justifications for decisions made and tools used for that calibration. Next, common issues that may be encountered in applied problems are explored using the same data set from the successful calibration.

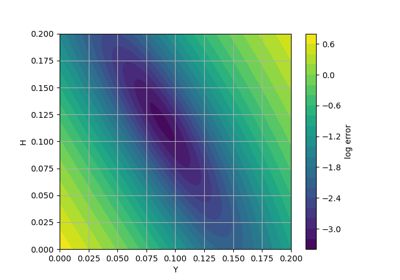

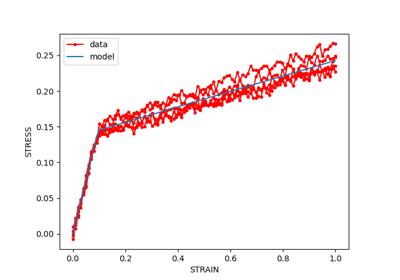

Parameter uncertainty example - external noise and internal variability
SIERRA/SM Material Point Model Practical Examples
In this section, we present the calibration of our UniaxialLoadingMaterialPointModel
to uniaxial compression data for a 6061-T6 aluminum from the Ductile Failure project at Sandia
[13].
Specifically, we calibrate to test specimens C-RD-01 and C-ST-01 from that dataset. Four calibrations are presented to highlight
different approaches to practical material calibration and potential issues that may arise. The four calibrations are:

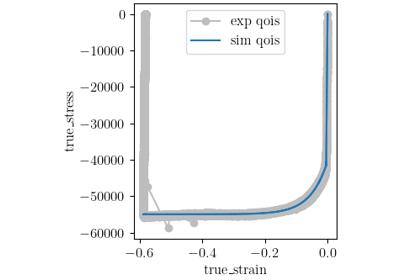

A successful calibration to true stress/strain data with data preprocessing and objective weighting.
A failed calibration to true stress/strain data without data preprocessing and the default objective weighting.
A failed calibration to true stress/time data that becomes successful with minor data processing.
A successful calibration with two other model forms demonstrating how MatCal can aid in material model choice while also demonstrating overfitting and model form error.
We use these four examples to highlight three important issues:
The methods in MatCal are robust but designed for specific situations. Calibrations 1 and 2 in this example will show how the
CurveBasedInterpolatedObjectiveclass should be used and how its requirement of having data with a monotonically increasing independent variable limits data that it can operate on.The objective function is a quantitative measure of the quality of the calibration. Translating what you think is a quality calibration to a quantitative measure may not always be intuitive and must be done carefully at times. Calibrations 1, 3, and 4 demonstrate the importance of careful objective function specification.
Since the objective is a quantitative measure of calibration quality, it can be used to determine the best model form for a dataset if a suite of calibrations with different model forms is completed. If one model form produces a lower objective value after calibration, it potentially means it is the better model form. However, care must be taken to avoid over fitting, so this is not a guarantee of improved model form.

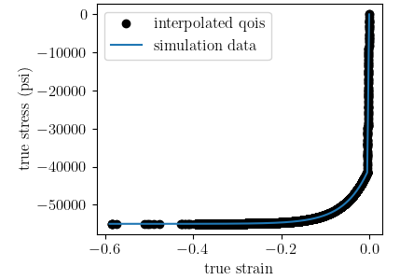

Calibration With Unmodified Data and Objective: A Simple Calibration Gone Wrong

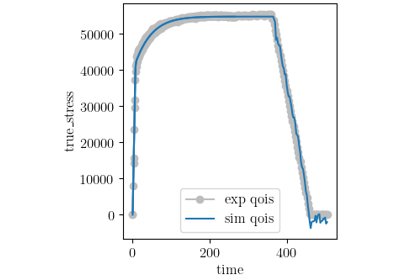

Calibration With Unloading: A Stress vs. Time Calibration Needs Attention to Detail

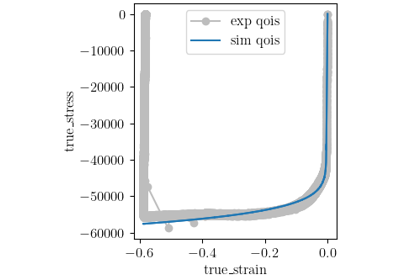

Exploring Different Model Forms: For Better and Worse…
Surrogate Studies

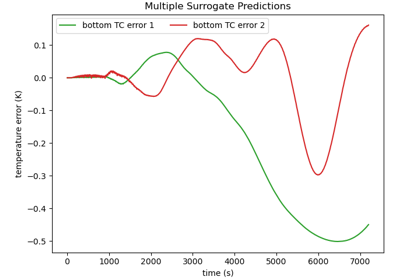

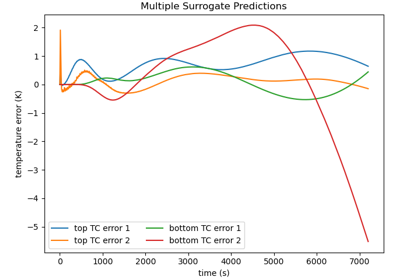

In this set of examples, we show how to build surrogate models using MatCal. These models then can be used as replacements for more expensive models in MatCal studies.
